Modbus is one of the specialized protocols used to transmit data in industrial automation systems. Its universality and versatility cause that it is often available also in home installations and devices. It is implemented in HRV units, heat pumps, heating boilers, fan coil units, PV inverters, air conditioners, EV chargers, energy meters and other devices.
We develop integrations based on the Modbus RTU protocol (serial communication via a 2- or 3-wire cable on the RS485 port) and Modbus TCP (communication on the TCP port via a computer network).
FIBARO and Yubii hubs allow direct communication with devices using Modbus TCP. Such devices shall be connected to the home network (via LAN or WiFi), all you have to do is installing dedicated QuickApp (plugin) at the FIBARO/Yubii hub.
For devices supporting Modbus RTU, it is necessary to use a Modbus RTU-TCP gateway (hardware converter), which will convert the RTU format from the RS485 port into the TCP format available via the LAN/WiFi network.
Tools and gateways

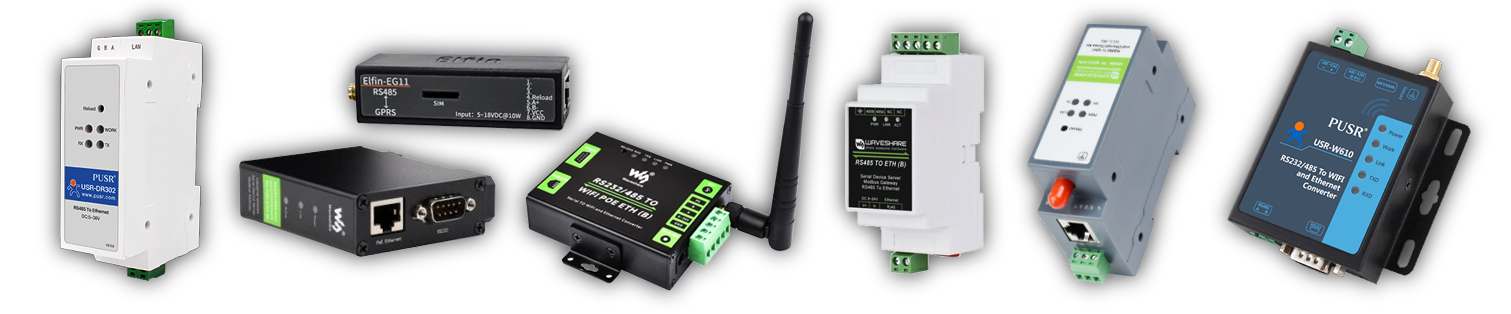

Our integrations for the Modbus RTU protocol were tested with the following gateways:
| Brand | Models | Connectivity | Config guide |
|---|---|---|---|
| Waveshare |
RS485 TO WIFI/ETH, RS232/485 TO WIFI ETH (B), RS232/485 TO WIFI POE ETH (B) |
WiFi, LAN, POE option |
EN  PL
|
|
RS485 TO ETH (B), RS232/485/422 TO ETH (B), RS232/485/422 TO POE ETH (B) |
LAN, POE option | ||
|
2-CH RS485 TO ETH (B), 2-CH RS485 TO POE ETH (B) |
2xLAN, POE option | ||
| PUSR |
USR-DR302, USR-TCP232-410s |
LAN | |
|
USR-DR404, USR-W610 |
WiFi, LAN | ||
| ELFIN | EE11a | LAN | |
| EW11a | WiFi |
| Tool | Description | Files |
|---|---|---|
| Modbus Gateway Finder |
QuickApp (fqax file) for HomeCenter 3 (Lite) and Yubii Home (Pro) hubs. It searches for PUSR, Waveshare and Elfin gateways in the local network, provides their IP addresses and allows to open a browser with the gateway configuration page. |
|
| Modbus Set Params |
QuickApp (fqax file) for HomeCenter 3 (Lite) and Yubii Home (Pro) series hubs. It allows to modify the transmission parameters of a device using Modbus RTU. Depending on the available options, it allows to change the device address (modbus ID), baudrate and parity. It works in conjunction with QuickApps that support integration (described below) and for devices that do not offer the ability to change parameters via a screen or control panel (e.g. Eastron energy meters, Waveshare relay modules or SHT20 sensor). In the QuickApp's variables, you must provide the ID of main QuickApp that integrates the device. Please remember that after changing the baudrate or parity, appropriate changes should also be made to the configuration of the Modbus RTU-TCP gateway. |
|
PV inverters
| Device | Model/series | Modbus | Order | Doc |
|---|---|---|---|---|
| Solaredge (Sunspec) |
PV inverters, energy storages and energy meters | RTU TCP |
[by phone] | |
| Fronius (Sunspec) |
PV inverters, energy storages and energy meters | RTU | [by phone] | |
| Kaco (Sunspec) |
Blueplanet NX3 inverters (production only) | RTU TCP |
[by phone] | |
| Sunspec | PV inverters, energy storages and energy meters compliant with the Modbus/Sunspec protocol | RTU TCP |
[by phone] | |
| Deye | Hybrid inverters Deye SUN (3 phases) with energy storage and compatibile hybrid SunSynk PV inverters (3 phases) |
RTU |
Marketplace |
|
| Growatt | inverters MOD TL3-X, Hybrid TL3-X, TL-XE i TL3-S Hybrid SPH models with energy meter and storage |
RTU | [by phone] |
|
| Kostal | Plenticore, Plenticore Plus, PIKO IQ, with energy storage | RTU TCP |
[by phone] | |
| Hoymiles | microinverters HMS, HMT and HM series, via DTU-PRO and DTU-PRO-S control units | RTU TCP |
Marketplace Z-Home |
|
Energy meters
| Device | Model/series | Modbus | Order | Doc |
|---|---|---|---|---|
| EMU Professional II | Modbus RTU models: P20A000MO, P21A000MO, Modbus TCP models: P20A000T, P21A000T |
RTU TCP |
Marketplace Z-Home |
|
| Eastron | models: SDM120M, SDM120CTM, SDM230M, SDM72D-M, SDM72CT-M, SDM630M (v1,v2), SDM630MCT (v1,v2) |
RTU |
Marketplace Z-Home |
|
| Chint | models DTSU666 and DTSU666–CT | RTU |
Marketplace Z-Home |
|
| Kostal (Sunspec) |
Kostal Smart Energy Meter | RTU TCP |
[by phone] |
EV Chargers (Wallbox)
| Device | Model/series | Modbus | Order | Doc |
|---|---|---|---|---|
| Prach Alpha | NRG1006, NRG1022 (modbus RTU) NRG1032 - via PNI NRG9014 module (modbus RTU TCP) NRG1002, NRG1012, NRG1022, NRG1024 - via PNI NRG9008 (RTU TCP) |
RTU TCP |
[by phone] |
Heat pumps
| Device | Model/series | Modbus | Order | Doc |
|---|---|---|---|---|
| Daikin Altherma | via DCOM-LT/MB or DCOM-LT/IO module | RTU |
Marketplace Z-Home |
|
HRV, ventilation
| Device | Model/series | Modbus | Order | Doc |
|---|---|---|---|---|
| Komfovent | models: Domekt R, CF and S series, with C6, C6M, C8 automation | RTU TCP |
Marketplace Z-Home |
|
| Frapol Onyx | modeles: Compact, Pride, Sky, Passiv and Premium | RTU |
Marketplace Z-Home |
|
| Drafton PRO | all Drafton PRO models, and compatibile Brink Flair | RTU |
Marketplace Z-Home |
|
| Brink Renovent | models: Excellent i Sky and comaptibile Drafton V i P-series | RTU |
Marketplace Z-Home |
|
| ThesslaGreen | models: AirPack4, AirPack Home, AirPack F | RTU |
Marketplace Z-Home |
|
| PRO-VENT | Mistral models with RC7 controllers: S6 PREMIUM, S8 HOME, S7 EASY | RTU TCP |
Marketplace Z-Home |
|
| Daikin VAM/VKM | via RTD-NET or RTD-10 module | RTU | [by phone] |
Other
| Device | Model/series | Modbus | Order | Doc |
|---|---|---|---|---|
| NEXEN (Sauna) | for control units: B21, B31,B12, C201x,C212x | RTU |
Marketplace Z-Home |
|
| Waveshare Relay | x32, x16, x8, x8 in/out modules DIN rail mount |
RTU TCP |
Marketplace Z-Home |
|
| SHT20 sensor | temperature and humidity sensor | RTU | [by phone] |
